  Home > Products > CAP Height control > CAP Height Control System CHC-300A
>>Features

1.Fully enclosed design, anti-dust, anti-vibration, anti-humidity.

2.Sophisticated control circuit design to ensure device reliability.

3.Including over-voltage protection,over-current protection and other anti-jamming circuit.

4.With disconnection protection, to ensure that the torch will not be damaged under emergency conditions.

5.Modular design, installation, commissioning and maintenance.

6.Super anti-jamming design.

>>Details

Product full name

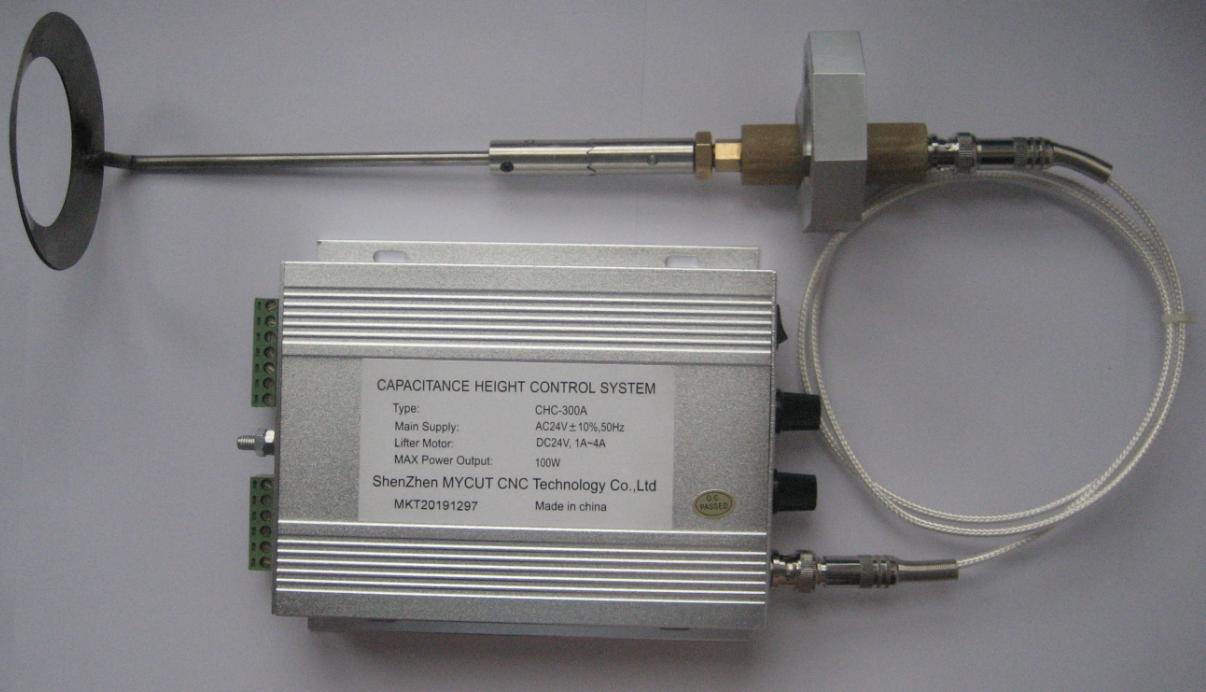

CAP Height Control System
Type
CHC-300A
Size
L * W * H: 150*100*47(mm)
Power input
AC24V±10% ,50Hz/60Hz
Lifter motor
DC24V motor
Output current
1A~5A
Temperature
Control box:-10℃~60℃;High-frequency cable:-10℃~200℃;Probe Assembly:-10℃~350℃
Control accuracy
±0.2mm
Adjustment range
From the surface 1mm~20mm
MAX output power
100W
High-frequency cable length
1000mm
Disconnection protection
High-frequency  cable

>>Example
Sorry, not yet released information.
>>Download
  Software Name Date File Size Format Download
CHC-300A mannual 2011-09-07 0B pdf Download
